International Certification Overview – CE Marking & PED Compliance
N&T Engitech Pvt Ltd is a globally recognized engineering and fabrication company specializing in the design, manufacturing and supply of pressure equipment and process systems. Our equipment is certified in accordance with major international pressure equipment directives and codes, ensuring full compliance and market access across Europe, USA, Canada and Australia.

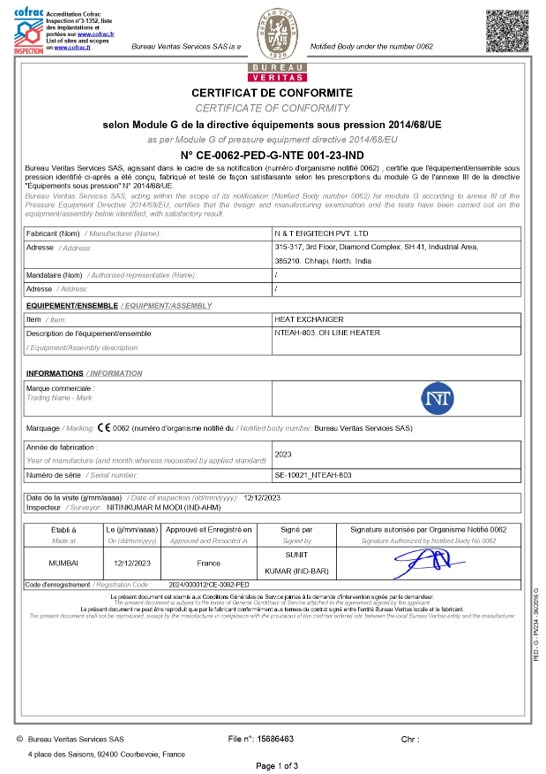

The attached certificate is a sample of PED compliance issued by an EU Notified Body for our pressure equipment. Each unit is supplied with a unique CE Declaration of Conformity, technical file and inspection report as required under Directive 2014/68/EU.
The attached certificate is a sample of PED compliance issued by an EU Notified Body for our pressure equipment. Each unit is supplied with a unique CE Declaration of Conformity, technical file and inspection report as required under Directive 2014/68/EU.
The attached certificate is a sample of PED compliance issued by an EU Notified Body for our pressure equipment. Each unit is supplied with a unique CE Declaration of Conformity, technical file and inspection report as required under Directive 2014/68/EU.
APPLICABLE EQUIPMENT
- PRESSURE VESSELS
- HEAT EXCHANGERS
- FILTERS
- AGITATOR VESSELS
- REACTORS
- SKID-MOUNTED SYSTEMS
- PIPING ASSEMBLIES
PROCESS INDUSTRIAL APPLICATIONS
- OILS & FATS
- CHEMICAL
- FOOD & BEVERAGE
- PETROCHEMICAL
- WATER TREATMENT
- DAIRY
- OIL & GAS
CERTIFICATIONS
- CE MARKING
- U-STAMP
- CRN
- AS MARK
Our Certification Standards: CE-PED & U Stamp Approved Equipment
We comply with major international pressure equipment directives and codes, ensuring full compliance and market access across global markets.
EU PED 2014/68/EU (European Union)
We manufacture and supply pressure equipment that complies with the Pressure Equipment Directive 2014/68/EU, applicable within the European Market.
Key Features:
- Design and manufacturing in accordance with essential safety requirements of PED Equipment
- Categorization based on fluid group, pressure, volume/diameter
- Compliance ensured via Notified Body assessment (Module B, D, G, etc.)
- CE Marking with EU Declaration of Conformity
- Material traceability, welding qualification (WPS/PQR/WPQ), and NDT documentation
US ASME Section VIII Division 1 – U Stamp
N&T Engitech is authorized to manufacture pressure vessels with the ASME "U" Stamp, which allows export and operation in the United States and other ASME-compliant regions.
Key Features:
- Compliance with ASME Boiler & Pressure Vessel Code, Section VIII, Div. 1
- Authorized Inspection Agency (AIA) involvement in each stage
- U-Stamp stamping on nameplates and Manufacturer's Data Report (U-1)
- Strict quality control, material verification and welder qualification as per ASME SEC IX
AU Australian Standard AS 1210 / AS/NZS 1200
We offer pressure vessels and equipment built to Australian Standards (AS 1210 & AS/NZS 1200) to serve industries across Australia and New Zealand.
Key Features:
- Design and compliance in line with AS 1210: Pressure Vessels and AS/NZS 1200: Pressure Equipment
- Design registration through state WorkSafe authorities
- Material selection and construction as per Australian material grades
- Local third-party inspection (if required) and documentation
CA CRN Registration – Canadian Standard (CSA B51)
N&T Engitech supplies pressure equipment that complies with the Canadian Registration Number (CRN) system under the CSA B51 Boiler, Pressure Vessel and Pressure Piping Code.
Key Features:
- Design review and registration in each Canadian province/territory
- Compliance with CSA B51, ASME Section VIII and provincial acts
- CRN stamping on nameplate and inclusion in technical documentation
- Collaboration with Authorized Inspection Agencies for Canadian jurisdictions
Our Assurance: Quality, Safety & Global Standards
N&T Engitech Pvt Ltd is committed to delivering engineering excellence with international compliance.
Quality Commitment
- Engineering excellence with international compliance
- Certified welders and in-house quality control lab
- Dossier preparation including WPS, WPQ, NDT reports, MTCs, test certificates and inspection records
- Export-ready documentation for customs, insurance and import authority approvals
Custom Solutions
We tailor our design, material selection and certification approach as per customer and country-specific regulations, ensuring smooth project execution and equipment acceptance.
Our team works closely with clients to understand their specific requirements and deliver solutions that meet both operational needs and regulatory compliance.
Our Certified Equipment: Pressure Vessels, Heat Exchangers, Agitator Vessels & Condensers

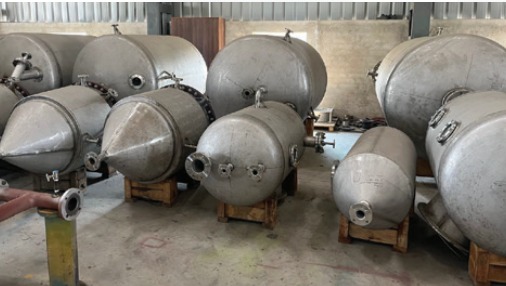

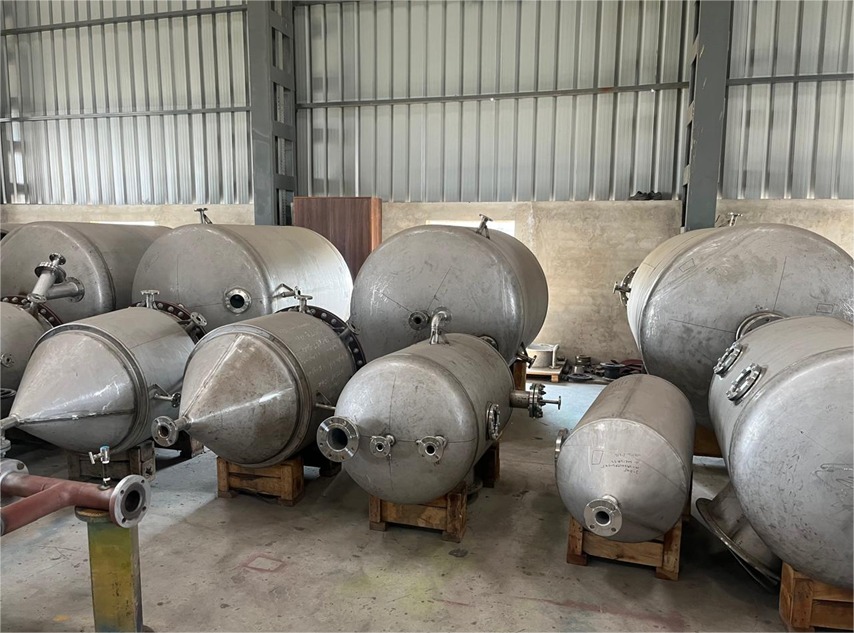

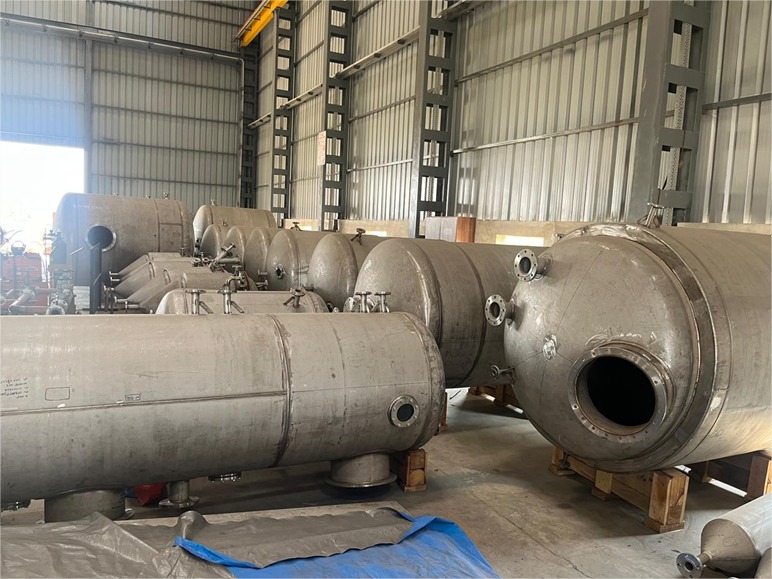

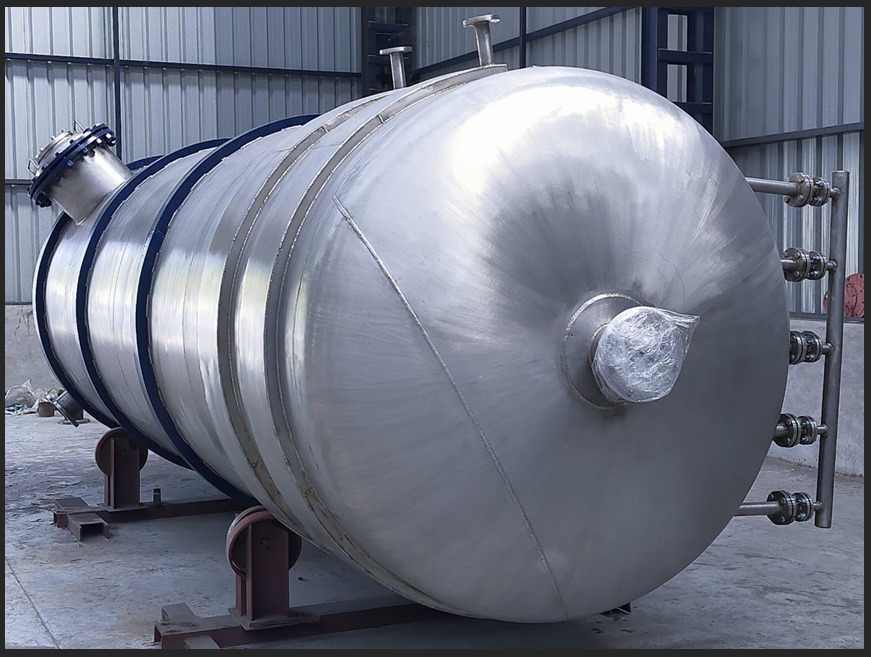

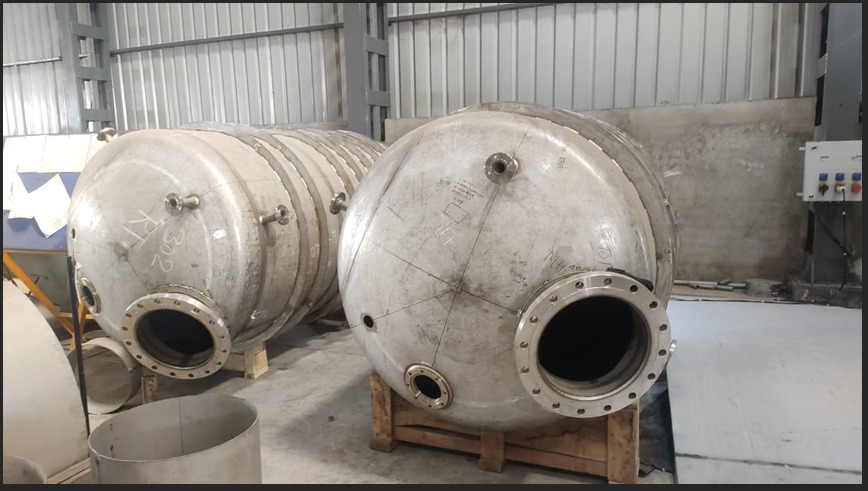

Pressure Vessels
Pressure vessels are closed containers designed to hold gases or liquids at a pressure substantially different from ambient pressure. At N&T Engitech, we engineer and fabricate pressure vessels as per global standards including PED 2014/68/EU, ASME Section VIII Div.1 (U Stamp), AS 1210 and CSA B51 with CRN registration.
Specifications:
- Design Standards: PED 2014/68/EU, ASME Section VIII Div.1 (U Stamp), AS 1210 and CSA B51 with CRN registration
- Pressure Range: As per requirement
- Volume: As per requirement
- Material: Carbon Steel, Stainless Steel (SS304, SS316), Duplex, Inconel, Monel Metal
- Testing: Radiography, Hydrostatic/Pneumatic Testing, DPT, UT

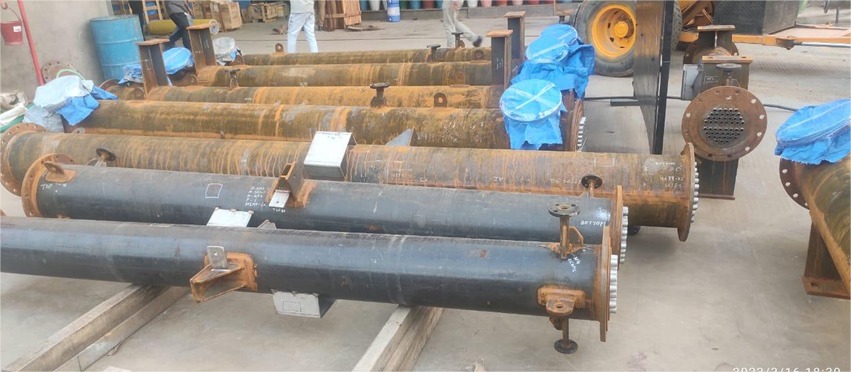

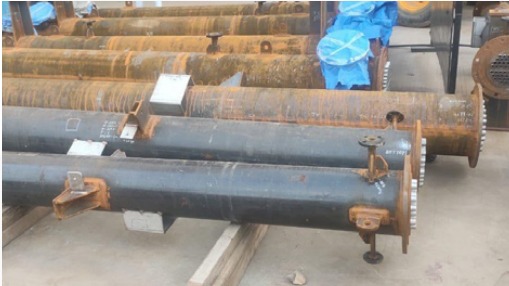

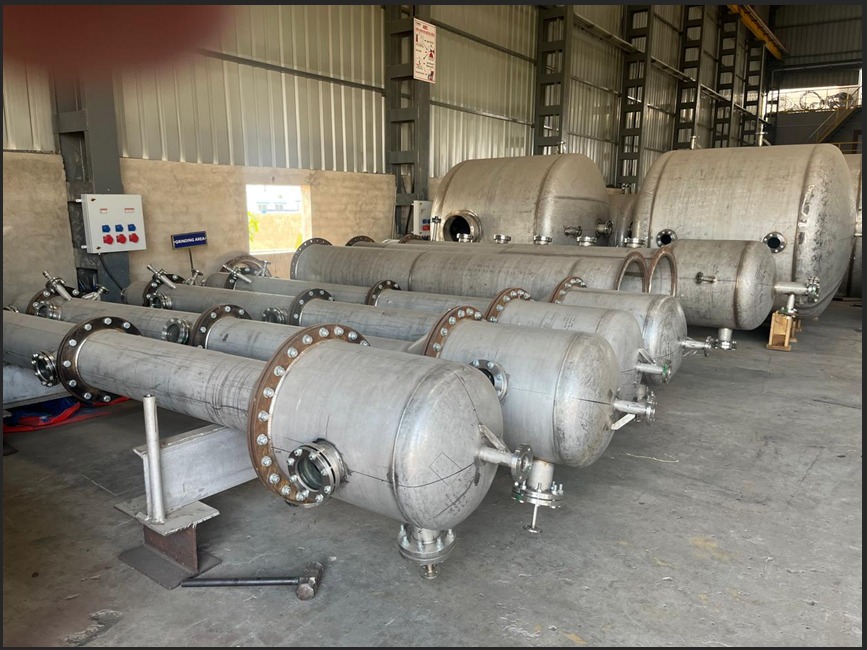

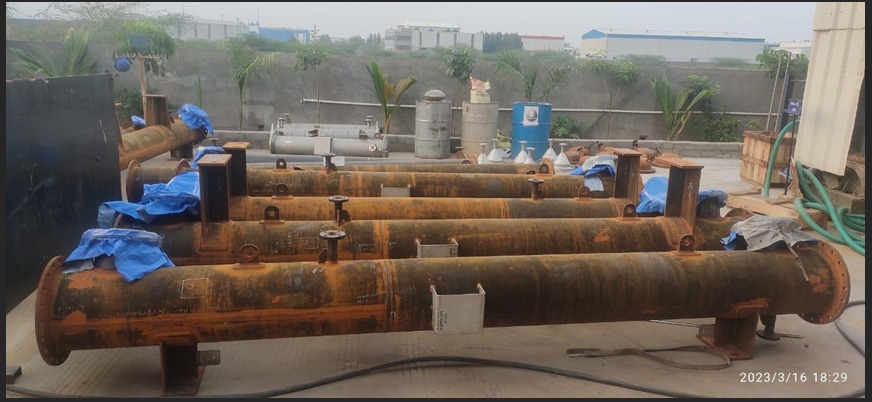

Heat Exchangers
Heat exchangers are used for efficient thermal energy transfer between fluids. We design and fabricate Shell & Tube, U-tube, Coil-in-shell and Double Pipe type heat exchangers, fully certified to comply with international codes and standards.
Specifications:
- Types: Shell & Tube, U-Tube, Double Pipe (TEMA Guidelines)
- Design Standards: PED 2014/68/EU, ASME Section VIII Div.1 (U Stamp), AS 1210 and CSA B51 with CRN registration
- Pressure: As per requirement
- Temperature: As per requirement
- Material: SS304/316L, Duplex, Carbon Steel, Monel Metal

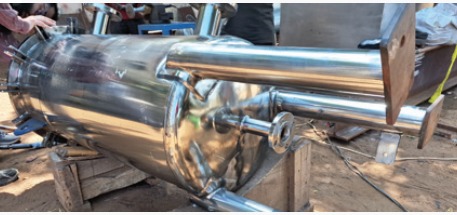

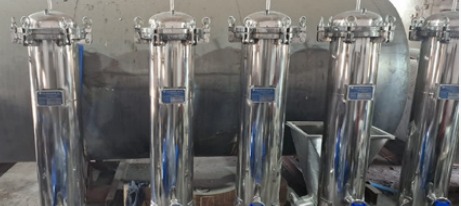

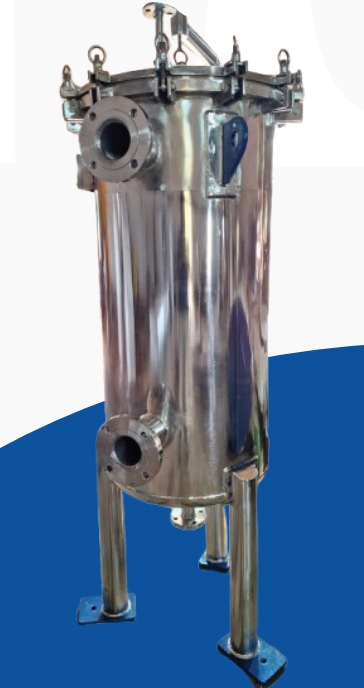

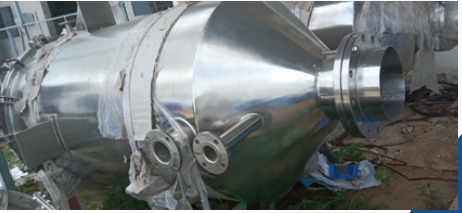

Polish Filters & Candle Filters
These are specialized vessels for solid-liquid separation or blending, meeting strict process and sanitary requirements. Our range includes Cartridge Filters, Bag Filters, Candle Filters.
Specifications:
- Filtration Rating: 1 to 200 microns
- Design Standards: PED 2014/68/EU, ASME Section VIII Div.1 (U Stamp), AS 1210 and CSA B51 with CRN registration
- Pressure: As per requirement
- Housing Material: SS304/316L (Mirror polished for GMP use)
- Closure: Clamp/Bolt type
- Filter Media: SS Sintered Candle, Cartridge, Polypropylene

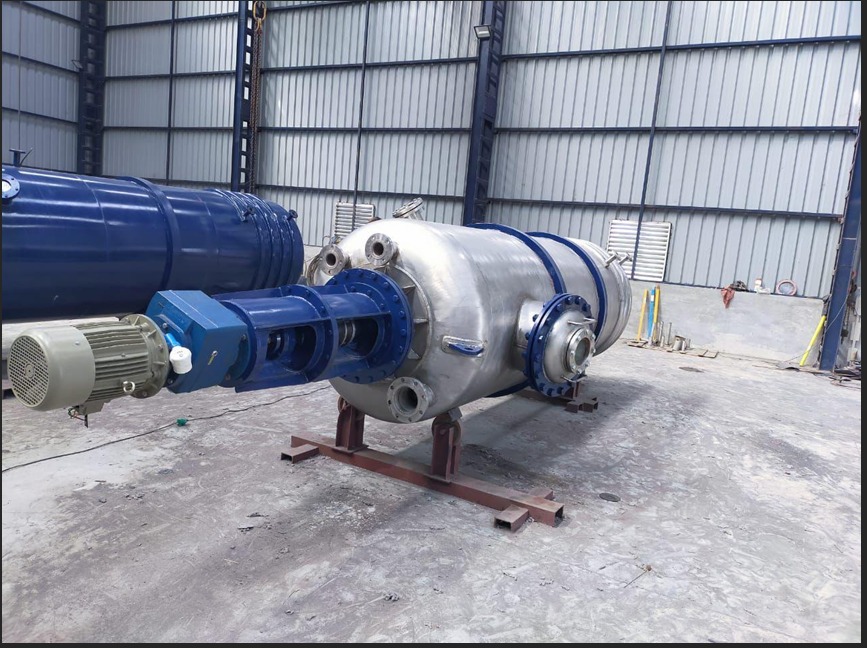

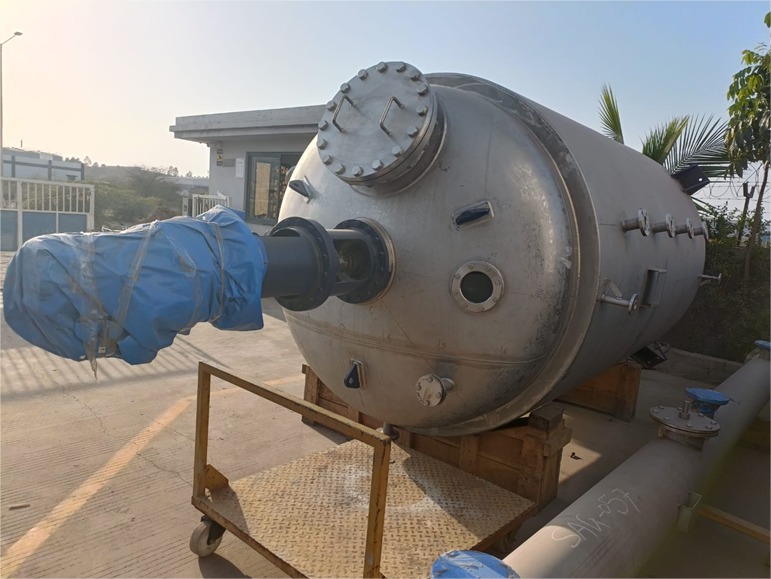

Agitator Vessels
Agitator vessels are engineered for uniform mixing, blending, emulsifying, or chemical reactions. Designed as per required design code for pressurized or vacuum operation, with custom agitator configurations.
Specifications:
- Volume: As per requirement
- Design Standards: PED 2014/68/EU, ASME Section VIII Div.1 (U Stamp), AS 1210 and CSA B51 with CRN registration
- Pressure: As per requirement
- Design: Vertical/Horizontal, Jacketed or Limpet coil
- Agitator Types: As per requirement
- Drives: NON Flameproof/Flameproof motor, Variable speed via VFD
- Surface Finish: GMP grade with Ra < 0.4 µm for pharma

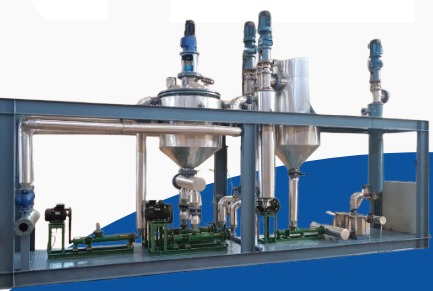

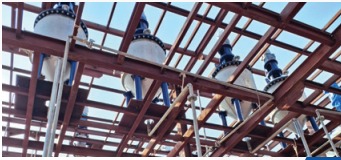

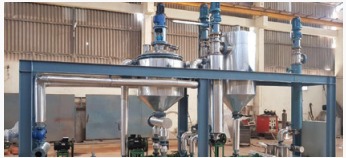

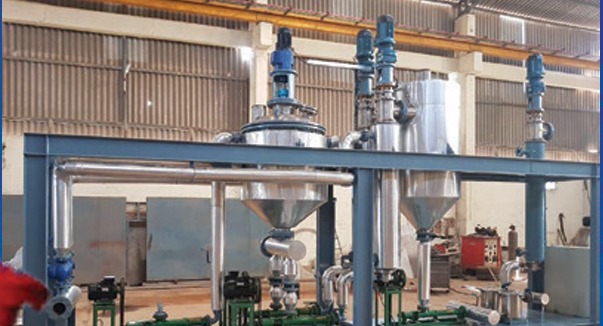

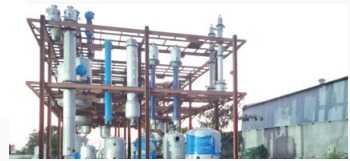

Skid-Based Plants
Our custom-engineered skid systems integrate equipment, piping, instrumentation and control systems into compact, transportable modules. Each skid is designed, built and factory-tested to meet international pressure equipment and safety regulations.
Specifications:
- Scope: As per process requirement
- Design Standards: PED 2014/68/EU, ASME Section VIII Div.1 (U Stamp), AS 1210 and CSA B51 with CRN registration
- Frame: SS/CS Structure with vibration-free design
- Piping: SS304/SS316L, Carbon Steel
- Control: PLC/SCADA automation

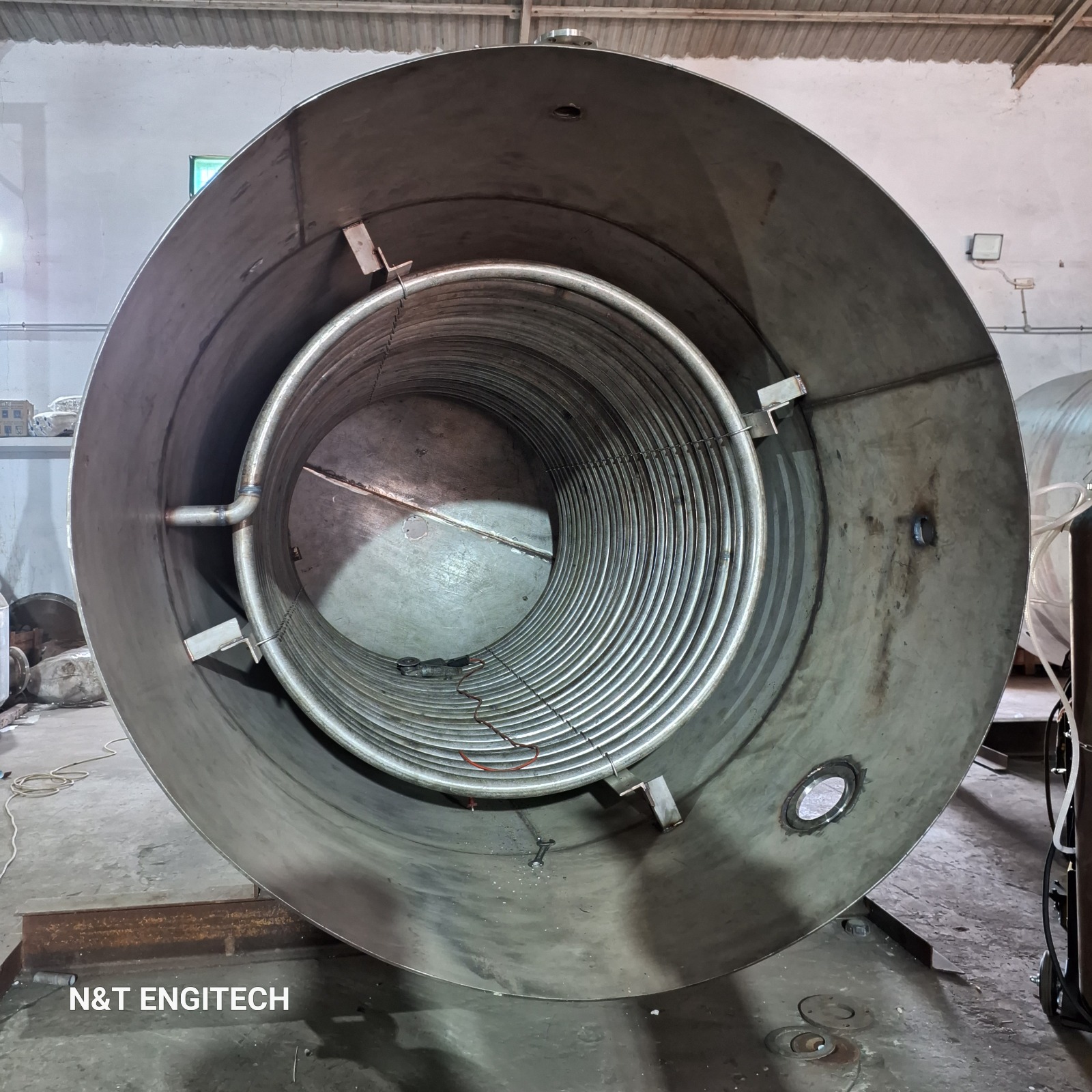

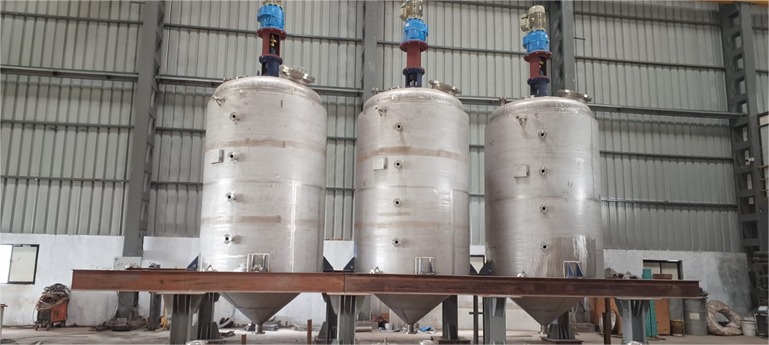

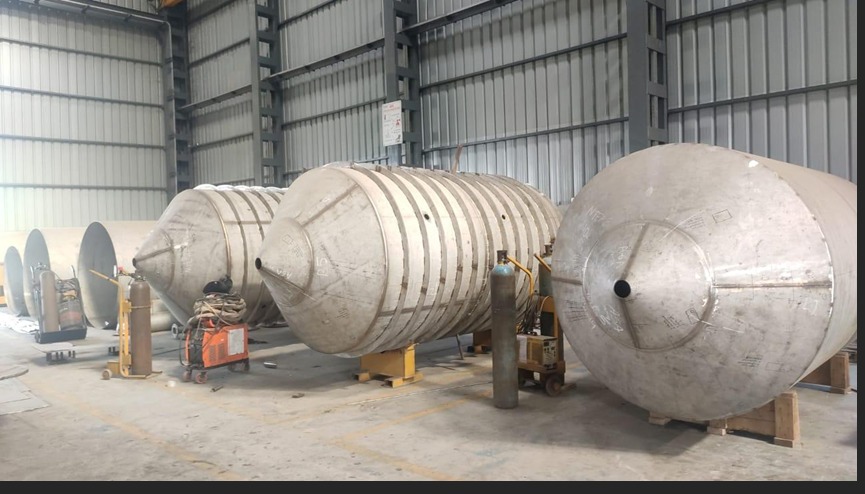

Reactors
We provide high-quality reactors suitable for batch or continuous operation in a variety of aggressive environments. Options include jacketed, agitated and vacuum-rated vessels.
Specifications:
- Volume: As per requirement
- Design Standards: PED 2014/68/EU, ASME Section VIII Div.1 (U Stamp), AS 1210 and CSA B51 with CRN registration
- Pressure: As per requirement
- Heating Options: Steam Jacket, Electric Heating, Limpet Coil
- Material: Carbon Steel, SS304/316L

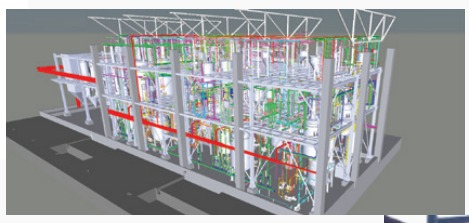

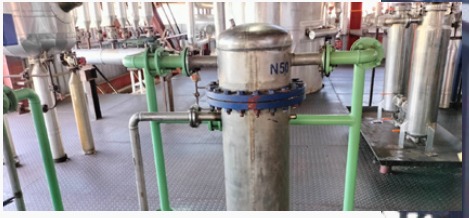

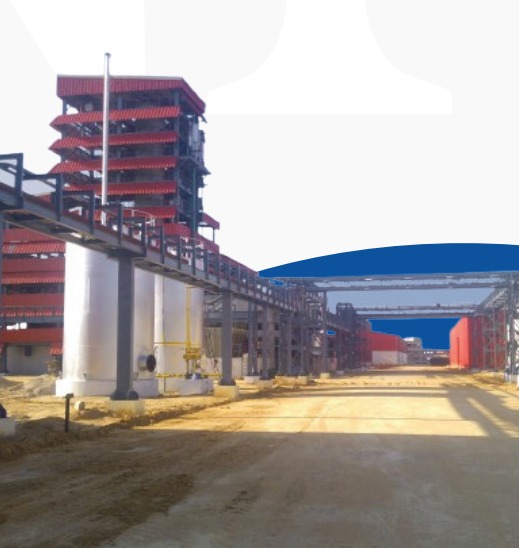

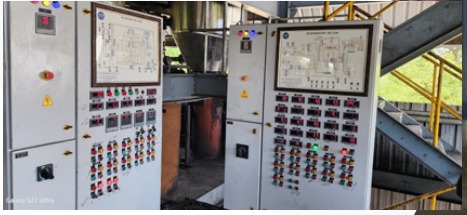

Pipeline Assemblies with Flanges, Valves, Instrumentation & Fittings
We provide prefabricated piping spools and assemblies with flanges, valves, fittings and instrumentation fully compliant with project specifications and international piping codes.
Specifications:
- Design Standards: ASME B31.3 / B31.1, EN 13480, AS/NZS 4041, CSA piping code
- Material: Carbon Steel, SS304, SS316L, Duplex
- Valves: CE-marked Ball, Butterfly, Control Valves
- Testing: Hydro / Pneumatic testing of full assembly
Manufacturing Key Points
Our manufacturing process follows strict quality control measures to ensure compliance with international standards and client specifications.
Design Validation
- Performed using ASME CODES SEC VIII / EN 13445 / AS 1210 / CSA B51
- Calculations include internal/external pressure, nozzle loads, seismic/wind loads
- Thermal and structural analysis (FEA where applicable)
Material Selection & Certification
- Use of certified materials (EN 10204 3.1 / ASME-compliant) from approved vendors
- Material traceability maintained with heat numbers and MTCs
- PED requires materials from approved manufacturers (PMAs if needed)
Welding and Qualifications
- Welders and WPS qualified per ASME SEC IX / ISO 9606 / AS 3992 / CSA W47.1
- WPS/PQRs developed as per project specification and governing code
- Pre-heat, post-weld heat treatment (PWHT), and inter-pass temperature controls applied
Nondestructive Testing (NDT)
- Visual (VT), Radiography (RT), Ultrasonic (UT), Dye Penetrant (PT), Magnetic Particle (MT)
- Extent of NDT as per design code and project specifications
- For CE/PED: Notified Body surveillance required (for CAT II & above)
Hydrostatic / Pneumatic Testing
- As per ASME, PED, AS 4037, or CSA requirements
- Typically 1.3–1.5 times design pressure for hydrotest
- Pneumatic testing done under controlled, safe conditions if hydrotest not suitable
Inspection & Documentation
- Third-party or Notified Body inspections at hold points
- Complete Dossier: Drawings, WPS/PQR, Welder Certificates, MTCs, NDT Reports, Test Certificates, CE/CRN/ASME Certificates
General Inspection & Testing Key Points (Applicable to All Equipment)
Our comprehensive inspection and testing procedures ensure that all equipment meets the highest quality standards and regulatory requirements.
| Phase | Key Points |
|---|---|
| 1. Material Inspection |
|
| 2. Dimensional Inspection |
|
| 3. Fit-up & Welding Inspection |
|
| 4. NDT (Non-Destructive Testing) |
|
| 5. Pressure Testing |
|
| 6. Final Visual Inspection |
|
| 7. Functional & FAT (Factory Acceptance Test) |
|
| 8. Marking & Documentation |
|
Documentation Deliverables after Inspection & Testing
for CAT II & above
Dimensional & visual inspection reports
NDT reports (RT/UT/PT/MT)
Hydro/pneumatic test reports
Functional test report (for skids/agitators)
CE/ASME/CRN/AS1210 stamping record
Final Inspection Release Note (IRN)
DoC (Declaration of Conformity)
Welding summary and weld map
Calibration certificates for test instruments
Manufacturer's Data Record (MDR)
Ready to Discuss Your CE-PED Equipment Requirements?
Contact us today to learn more about our certified equipment and how we can support your specific application needs with our engineering expertise and international compliance.
